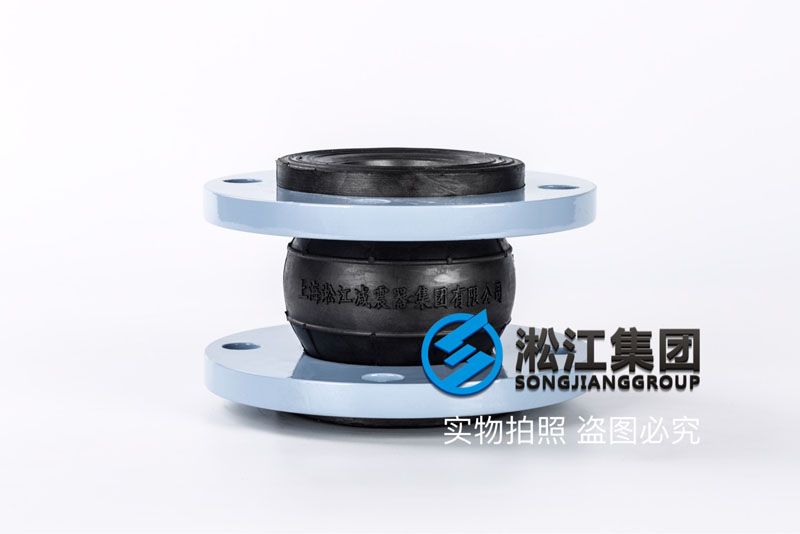

【NR】DN65單球橡膠接頭“擁有獨立試驗室”
DN65 Single Ball Rubber Joint "With Independent Laboratory"

上海淞江減震器集團有限公司官方網站為您介紹：【NR】DN65單球橡膠接頭“擁有獨立實驗室”信息，淞江集團為眾多高標準客戶提供優質橡膠接頭，所有產品原材料都會經過我廠內部試驗室進行檢測，檢測合格后才能批量生產，確保產品的穩定性。
The official website of Shanghai Songjiang Shock Absorber Group Co., Ltd. introduces to you: [NR] DN65 single ball rubber joint "has independent laboratory" information. Songjiang Group provides high-quality rubber joint for many high-standard customers. All products and raw materials will be tested by our factory's internal laboratory, and can be mass produced only after qualified testing. To ensure the stability of products.

名稱：單球橡膠接頭	點擊下載圖紙
型號：KXT-NR 口徑：DN65 壓力：1.6Mpa 長度：115mm 橡膠材質：天然橡膠（云象 / 東風1#） 法蘭材質：碳鋼；另有球墨、不銹鋼、PVC

法蘭標準：GB/T 9119-2000 （除此法蘭標準之外，我廠還可以配套更多法蘭標準，如需了解其他法蘭標準請點擊：橡膠接頭法蘭標準）

適用介質：普通水、空調水、溫度80度以下；（各種酸堿、油類、粉狀等特殊介質不能用，要選擇特殊材質才可以使用；）
其他介質：弱酸堿、120度高溫請點擊：EPDM三元乙丙橡膠接頭；
液壓油介質請點擊：NBR丁腈橡膠接頭；
強酸堿、航空煤油、汽油、柴油請點擊：PTFE四氟橡膠接頭

使用優點：減震、降噪、保護水泵設備的長期使用，降低維修成本。

質保期限：36個月

相關鏈接：橡膠接頭性能檢測報告

生產廠家：上海淞江減震器集團有限公司

資質證書：合格證、質保書、檢驗報告、德國萊茵TUV認證、國家型式試驗報告、第三方性能檢測報告、材質報告。

安裝教程鏈接：橡膠接頭安裝說明

Name: single ball rubber joint

Model: KXT-NR

Caliber: DN65

Pressure: 1.6Mpa

Length: 115mm

Rubber material: natural rubber (cloud Elephant / Dongfeng 1#)

Flange material: carbon steel / ductile QT450 / stainless steel.

Flange standard: GB/T 9119-2000 (in addition to this flange standard, our factory can also support more flange standards, if you need to know other flange standards, please click: rubber joint flange standard)

Applicable media: ordinary water, air conditioning water, temperature below 80 degrees; (various acid-base, oil, powder and other special media can not be used, to select special materials can be used;)

Other media: weak acid and alkali, 120 degree high temperature, please click: EPDM rubber joint;

Hydraulic oil medium please click: NBR rubber joint;

Strong acid base, aviation kerosene, gasoline and diesel oil please click: PTFE rubber joint.

Advantages: shock absorption, noise reduction, protection of water pump equipment for long-term use, reduce maintenance costs.

Warranty period: 36 months.

Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.

Qualification Certificate: Qualification Certificate, Quality Assurance Certificate, Inspection Report, TS Pressure Pipeline Production License of Rubber Joint Industry, National Type Test Report, Third Party Performance Test Report, Material Report.

三、單球橡膠接頭發貨現場：

四、合肥京東方空調系統動力泵房橡膠接頭案例：

五、DN65單球橡膠接頭工廠介紹：

相關鏈接：橡膠接頭工程案例
