【DIN2501】DN150德標橡膠接頭“出口工廠”
上海淞江減震器集團有限公司官方網站為您介紹：【DIN2501】DN150德標橡膠接頭“出口工廠”信息，淞江集團常年出口德標橡膠接頭，執(zhí)行標準DIN2501 PN16，以下是DN150單標橡膠接頭介紹。
DN150 single ball standard rubber joint "export factory"
The official website of Shanghai Meijiang Shock Absorber Group Co., Ltd. [DIN2501] DN150 single ball German standard rubber joints "export factory" information, the annual export of Meijiang Group single ball German standard rubber joints, the implementation of the standard DIN2501 PN16, the following is the DN150 single ball German standard rubber joints.

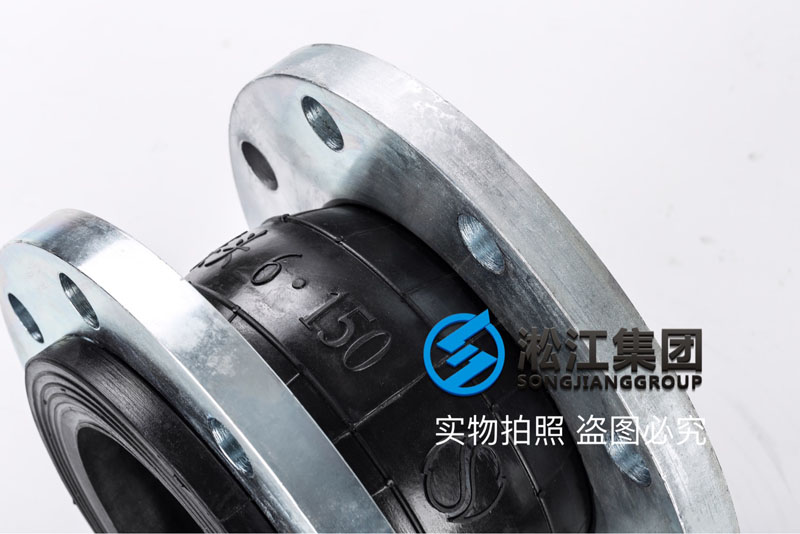

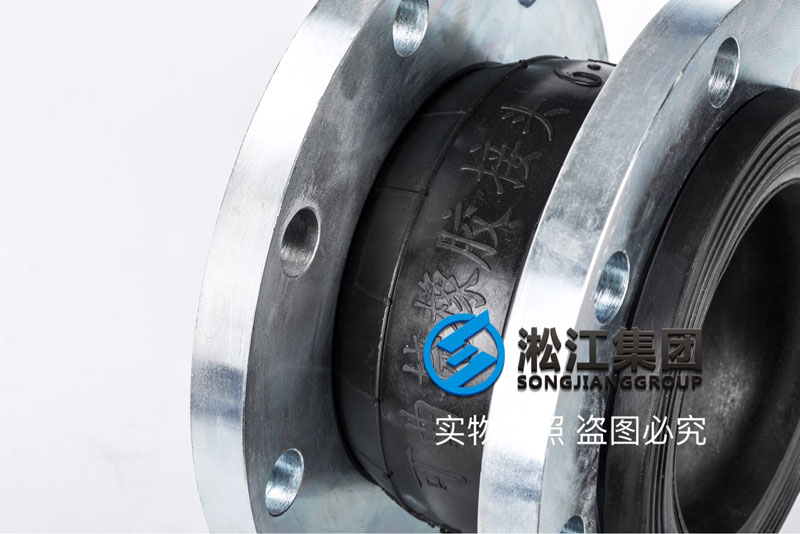

一、DN150德標橡膠接頭實物拍照：
二、DN150德標橡膠接頭參數介紹：
名稱：單球德標橡膠接頭
型號：DN150
安裝長度：180mm
軸向壓縮：18mm
軸向伸長：10mm
軸向拉伸：10mm
橫向位移：12mm
偏轉角度：15°
標準：DIN 2501
壓力：PN16
法蘭：碳鋼（Q235）
介質：普通水、
質保：3年
橡膠材質：天然橡膠
使用優(yōu)點：減震、降噪、保護冷水機組的長期使用，降低維修成本。
生產廠家：上海淞江減震器集團有限公司
資質證書：合格證、質保書、檢驗報告、德國萊茵TUV認證、國家型式試驗報告、第三方性能檢測報告、含量成分檢測報告。
淞江集團橡膠接頭生產流程：原材料檢測-小料自動配料-大料自動配料-自動混煉-自動成筒-自動成型-自動硫化-質量檢測-實驗室檢測-交付客戶。
Name: single ball standard rubber joint
Model: DN150
Installation length: 180mm
Axial compression: 18mm
Axial elongation: 10mm
Axial tension: 10mm
Lateral displacement: 12mm
Deflection angle: 15 degrees.
Standard: DIN 2501
Pressure: PN16
Flange: carbon steel (Q235)
Medium: ordinary water,
Warranty: 3 years
Rubber Material:
Advantages: shock absorption, noise reduction, protection of the long of chillers, and reduction of maintenance costs.
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
Qualification Certificate: Qualification Certificate, Quality Guarantee, Inspection Report, TS Pressure Pipeline Production License of Rubber Joint Industry, National Type Test Report, Third Party Performance Test Report, Content Component Test Report.Production process of rubber joint in Songjiang group：Raw Material Testing - Automatic Blending of Small Material - Automatic Blending of Large Material - Automatic Mixing - Automatic Forming - Automatic Sulfuration - Quality Testing - Laboratory Testing - Delivery to Customers
三、DN150德標橡膠接頭工廠介紹：
